A20 Series Pilot Lamps Ø22mm LED Pilot Lamps

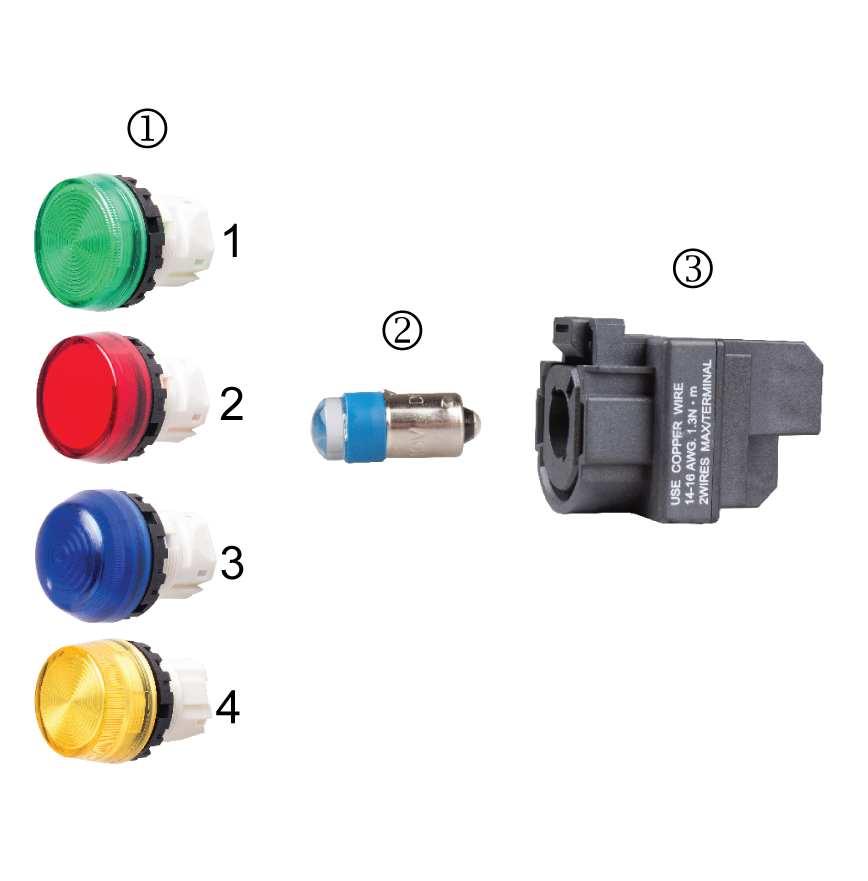

Model ① Pilot lamp operators Part Numbers ② LED LAMP Part Numbers ③ Lamp Socket
  • 1. Flush type
  • A20P-1EG
  • A20P-1ER
  • A20P-1ES
  • A20P-1EW
  • A20P-1EY
  • A20P-1EC

  • 2. Marking Plate Type
  • A20P-1BEG
  • A20P-1BER
  • A20P-1BES
  • A20P-1BEW
  • A20P-1BEY
  • A20P-1BEC

  • 3. DomeType
  • A20P-2EG
  • A20P-2ER
  • A20P-2ES
  • A20P-2EW
  • A20P-2EY
  • A20P-2EC

  • 4. Extended Type
  • A20P-2TEG
  • A20P-2TER
  • A20P-2TES
  • A20P-2TEW
  • A20P-2TEY
  • A20P-2TEC
  • LAED-6G (6VAC/DC)
  • LAED-6R (6VAC/DC)
  • LAED-6S (6VAC/DC)
  • LAED-6W (6VAC/DC)
  • LAED-6Y (6VAC/DC)
  • LAED-1G (12VAC/DC)
  • LAED-1R (12VAC/DC)
  • LAED-1S (12VAC/DC)
  • LAED-1W (12VAC/DC)
  • LAED-1Y (12VAC/DC)
  • LAED-2G (24VAC/DC)
  • LAED-2R (24VAC/DC)
  • LAED-2S (24VAC/DC)
  • LAED-2W (24VAC/DC)
  • LAED-2Y (24VAC/DC)
  • LAED-HG (110VAC/DC)
  • LAED-HR (110VAC/DC)
  • LAED-HS (110VAC/DC)
  • LAED-HW (110VAC/DC)
  • LAED-HY (110VAC/DC)
  • LAED-M3G (230/240VAC/DC)
  • LAED-M3R (230/240VAC/DC)
  • LAED-M3S (230/240VAC/DC)
  • LAED-M3W (230/240VAC/DC)
  • LAED-M3Y (230/240VAC/DC)
A20-EQ

GENERAL INFORMATION
Insulation Resistance 100MΩ minimum at 500V DC megger
Dielectric Strength Contact block: 2,500VAC for 1 Min.
Illuminated unit: 2,000VAC for 1 Min.
Vibration resistance Operation Extremes: 5-55Hz, Amplitude: 0.5mm
Damage Extremes: 30Hz, Amplitude: 1.5mm
Shock Resistance Operation Extremes: 100m/s²
Damage Extremes: 1,000m/s²
Ambient Temperature Ambient Temperature
Ambient Humidity 45~85%RH
Degree of Protection IP65
LED Rating
Type No Rated Voltage Rated Voltage Color code LED life
LAED-6 6V AC/DC 10mA (R, Y) 7mA (G, W, S) G: Green W: White R: Red S: Blue Y: Yellow 50,000 Hrs
LAED-1 12V AC/DC 14mA (R, Y) 13mA (G, W, S)
LAED-2 24V AC/DC 14mA (R, Y) 13mA (G, W, S)
LAED-H 110V AC/DC 5.5mA
LAED-M3 230/240V AC/DC 2.7mA
