Slim size (17.5 mm / 22.5 mm / 35 mm)
LED indicator to display various operation status (power / input / logic input / errors / feedback / output)
Screw / screw-less wiring connection models
P channel FET / relay contact safety output models (SFC Series)
Auxiliary PNP output
OFF-delay output and time setting (high performance / non-contact door switch models)
Logic (AND) connection and expansion relay units (high performance / non-contact door switch models)
International safety standard and regulation compliance : SIL3, SIL CL3, PL e, CE, UL Listed, S-Mark

Function Type		Part#	Safety Instantaneous Outputs	Auxiliary Outputs	Off-delay Outputs	Off-delay Time	Terminal type

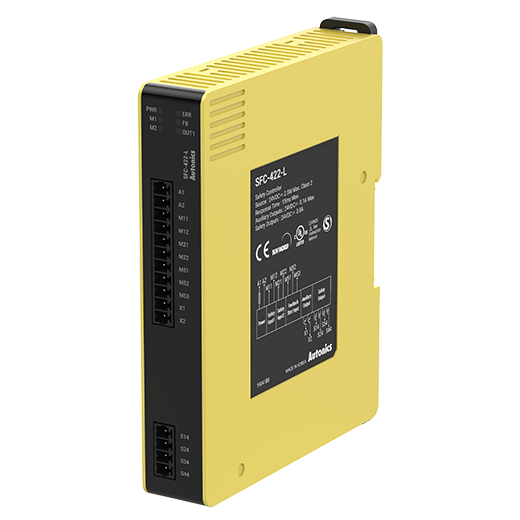

	Basic Unit	SFC-422	4 P-channel FET	2 PNP	–	–	Screw
		SFC-422-L					Screwless
	Advanced Unit	SFC-A322-23	3 P-channel FET	2 PNP	2	3 sec.	Screw
		SFC-A322-23-L					Screwless
		SFC-A322-2300				300 sec.	Screw
		SFC-A322-2300-L					Screwless

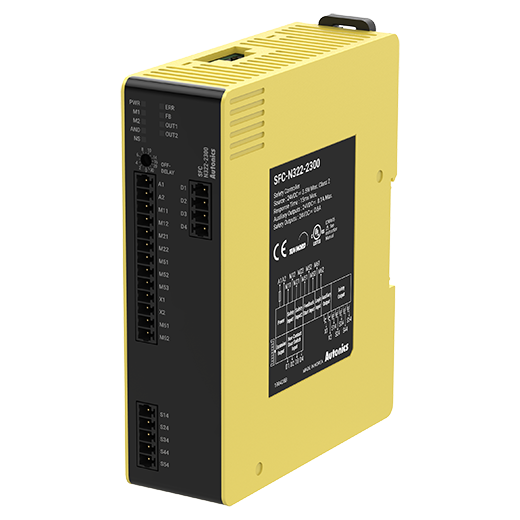

	Non-Contact Door Switch Unit (for SFN Series)	SFC-N322-23	3 P-channel FET	2 PNP	2	3 sec.	Screw
		SFC-N322-23-L					Screwless
		SFC-N322-2300				300 sec.	Screw
		SFC-N322-2300-L					Screwless

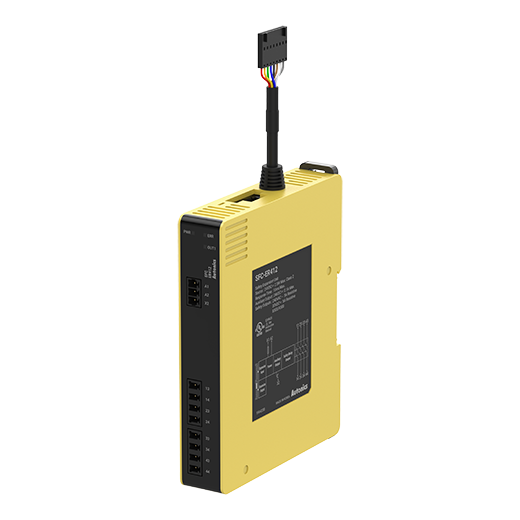

	Expansion Relay Unit	SFC-ER412	4 Relay	1 PNP	–	–	Screw
		SFC-ER412-L					Screwless
	Relay Unit	SFC-R212	2 Relay	1 PNP	–	–	Screw
		SFC-R212-L					Screwless
		SFC-R212-R23			2	3 sec.	Screw
		SFC-R212-R23-L					Screwless
		SFC-R212-R230				30 sec.	Screw
		SFC-R212-R230-L					Screwless
		SFC-R412	4 Relay		–	–	Screw
		SFC-R412-L					Screwless
