CP2 Series 22mm Panel mounting Unibody type



Key Features

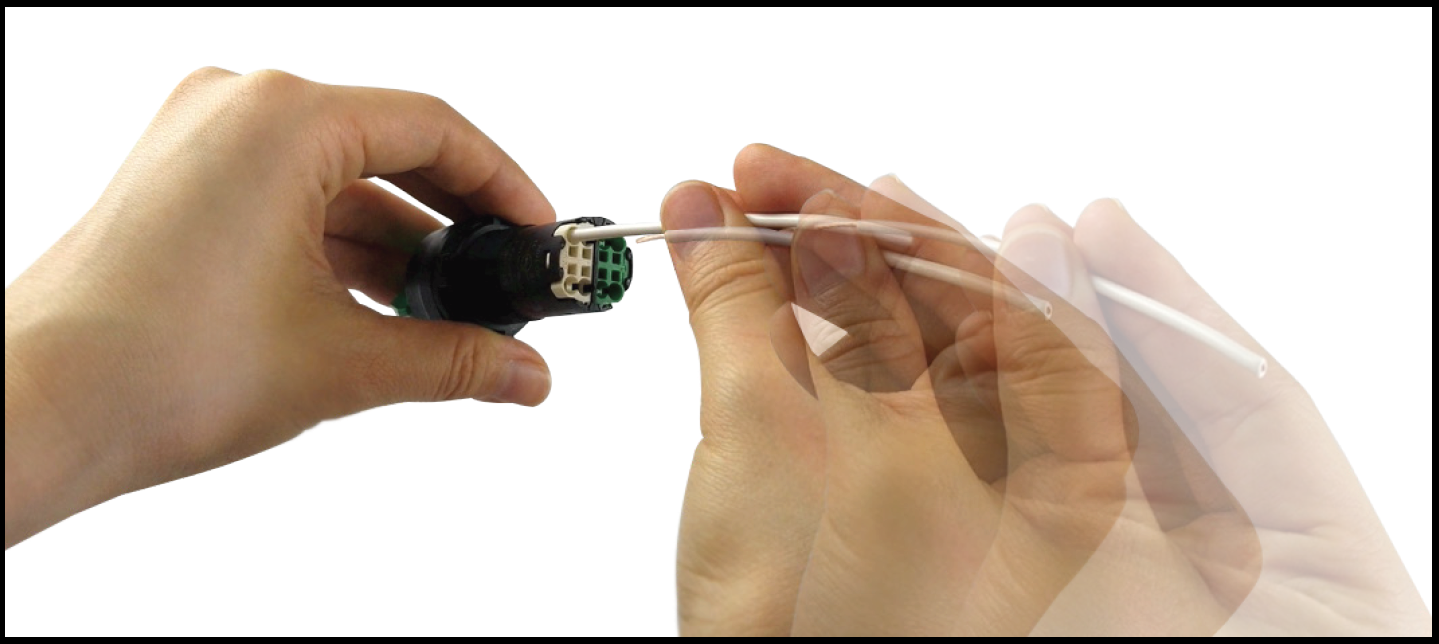

  • WIRE-PUSH-IN system to greatly reduce wiring time
  • Spring clamps to increase wire holding force and stability
  • Two wiring holes per spring contact for common wiring or alternative use
  • Central partition structure between contact blocks to enhance electrical insulation
  • Solid wire, strand wire or European terminal wiring can be used
  • Contact blocks and lampholders are clearly recognizable with their colors
  • IP66 waterproof (front operator)
  • Accessories for contact block available (for IP66/IP68)
Ordering Information
① Bezel Material
Blank Plastic Bezel
4 Metal Bezel
② Style
B Non-Illuminated Pushbutton Switch
L Illuminated Pushbutton Switch
③ Operator
A Maintained
M Momentary
④ Shape
1 Flush
2 Extended
F2 Extended with Full Shroud
4 Φ40 Mushroom
⑤ Marking Type
Blank Unmarking Type
B Marking Type
⑥ Contact Arrangement
10 1NO
01 1NC
20* 2NO
02* 2NC
11* 1NO+1NC
⑦ Operator Voltage
Blank Non-Illumination Type
Q3** LED 12V AC/DC
Q4** LED 24V AC/DC
Q11** LED 110V AC
Q22** LED 220V AC
⑧ Color
B* Black
G Green
R Red
S Blue
W White
Y Yellow
⑨ Head
Blank Standard
U Silhouette
T Extended Large frame
*Non-Illuminated only **Illuminated only
Ordering Information
① Bezel Material
Blank Plastic Bezel
4 Metal Bezel
② Type
Bezel Hole ø34.6mm BV* Pull/Turn To Release ø40 Mushroom
LV** Pull/Turn To Release ø40 Mushroom
BP* Pull To Release ø40 Mushroom
LP** Pull To Release ø40 Mushroom
BT* Turn To Release ø40 Mushroom
LT** Turn To Release ø40 Mushroom
Bezel Hole ø29.0mm P3* Pull to Release Φ30 Mushroom
P4* Pull to Release Φ40 Mushroom
P6* Pull to Release Φ60 Mushroom
T3* Turn to Release Φ30 Mushroom
T4* Turn to Release Φ40 Mushroom
T6* Turn to Release Φ60 Mushroom
K3* Key Release Φ30 Mushroom
K4* Key Release Φ40 Mushroom
K6* Key Release Φ60 Mushroom
③ Contact Arrangement
10 1NO
01 1NC
20* 2NO
02* 2NC
11* 1NO+1NC
④ Operator Voltage
Blank Non-Illumination Type
Q3** LED 12V AC/DC
Q4** LED 24V AC/DC
Q11** LED 110V AC
Q22** LED 220V AC
⑤ Head
Blank Standard
T Extended Large frame
*Non-Illuminated only **Illuminated only
Ordering Information
① Bezel Material
Blank Plastic Bezel
4 Metal Bezel
② Style
B Non-Illuminated Pushbutton Switch
L Illuminated Pushbutton Switch
③ Action
2 2 Positions -45°~+45° Maintained
22 2 Positions 0°~+90° Maintained
23 2 Positions 0°~+45° Maintained
24 2 Positions 0°~+45° Spring Return from Right
3* 3 Positions -45°~0°~+45° Maintained
31* 3 Positions -45°~0°~+45° Spring Return from Right
32* 3 Positions -45°~0°~+45° Spring Return from Left
33* 3 Positions -45°~0°~+45° Spring Return Two-Way
④ Lever
Blank Standard Lever
L Long Lever
⑤***Contact Arrangement
10 1NO
01 1NC
20* NO / NO
02* NC / NC
11* NO / NC
11N* NC / NO
⑥ Operator Voltage
Q2** LED 6V AC/DC
Q3** LED 12V AC/DC
Q4** LED 24V AC/DC
Q11** LED 110V AC
Q22** LED 220V AC
⑦ Color
B* Black
G Green
R Red
S Blue
W White
Y Yellow

⑧ Head
Blank Standard
U Silhouette
T Extended Large frame
*Non-Illuminated only **Illuminated only ***Contact arrangement : 2 position (10, 01, 20, 02, 11), 3 postion(20, 02, 11, 11N)
Ordering Information
① Bezel Material
Blank Plastic Bezel
4 Metal Bezel
② Action
2 2 Positions -45°~+45° Maintained
22 2 Positions 0°~+90° Maintained
23 2 Positions 0°~+45° Maintained
24 2 Positions 0°~+45° Spring Return from Right
3 3 Positions -45°~0°~+45° Maintained
31 3 Positions -45°~0°~+45° Spring Return from Right
32 3 Positions -45°~0°~+45° Spring Return from Left
33 3 Positions -45°~0°~+45° Spring Return Two-Way
③ Function (2 position/3 position)
A Key removable in L+R / L+C+R
B Key removable in L / L+C
C Key removable in R / C+R
D* Key removable in C
E* Key removable in L+R
G* Key removable in L
H* Key removable in R
④ Contact Arrangement (No.1 / No.2)
10 NO / X
01 NC / X
20 NO / NO
02 NC / NC
11 NO / NC
11N NC / NO
⑤ Head
Blank Standard
U Silhouette
T Extended Large frame
  *3 Position only
GENERAL INFORMATION
Insulation Resistance 100 MΩ above ( 500V DC High resistance meter )
Vibration Resistance E-stop swtiches Operation Extremes: 10-500Hz, Amplitude: 0.35mm, 50m/s²
Damage Limits: 10-500Hz, Amplitude: 0.35mm, 50m/s²
Pilot light Pushbutton, Illuminated pushbutton and Selector switch Operation Extremes: 5-55Hz, Amplitude: 0.5mm
Damage Limits: 30Hz, Amplitude: 1.5mm
Shock Resistance E-stop swtiches Operation Extremes: 150m/s²
Damage Limits: 1,000m/s²
Pilot light Pushbutton, Illuminated pushbutton and Selector switch Operation Extremes: 100m/s²
Damage Limits: 1,000m/s²
Dielectric Strength Switch parts Between charge and non-charged metal parts: 2,000V AC . 1minute
Between abnormal terminals: 2,000V AC . 1minute
Between Same polarity Terminals: 2,000V AC . 1minute
Between Contact terminals and lamp terminals: 2,000V AC . 1minute
Illuminated parts Between charging and grounding: 2,000V AC . 1minute
Ambient Temperature Operation: -25 ~ +55°C( no freezing ), Storage: -45°C~+85°C
Ambient Humidity 45~85%RH
Degree of Protection From panel front: IP66 / Terminal: IP20 (IP66 with silicon sleeve)
Contacts Rating
Rated Insulation Voltage 400 V
Rated Terminal Current 8A
Rated Operating Voltage 12V 24V 120V 240V 380V
AC 50/60Hz Resistive Load 8V 8A 8A 6A 3.8A
Inducitive Load 8V 8A 6A 3A 1.9A
Rated Operating Voltage 12V 24V 125V 250V 400V
DC Resistive Load 2.5V 2.5V 1.1A 0.55A 0.3A
Inducitive Load 2.5V 2.5V 0.55A 0.27A 0.15A
LED Rating
Type No Rated voltage Rated Current Color code
LAED-1 (Color code) 12V AC/DC 2.2 mA (G) 10.0 mA (R . Y) 12.0 mA (S) G:Green S:Blue R:Red W:White Y:Yellow
LAED-2 (Color code) 24V AC/DC
LAED-H (Color code) 110V AC/DC 1.2 mA (G) 1.3 mA (Y) 1.4 mA (R . S)
LAED-M3 (Color code) 230/240V AC/DC 1.1 mA (G) 1.2 mA (R . S . Y)
LAED-11 (Color code) 110VAC 2.8 mA (G) 10.5 mA (S)
10.6 mA (R) 10.5 mA (Y)
LAED-22 (Color code) 220V AC/DC 1.9 mA (G) 9.1 mA (S)
8.8 mA (R) 9.0 mA (Y
