MS70-LT Ø70mm LED Signal Lights, Steady/Flash, Various mountable

Key Features

  • High Intensity LED flashing
  • Three mounting options
  • Two flashing patterns (built-in slide switch)
  • IP65(buzzer type- IP50)

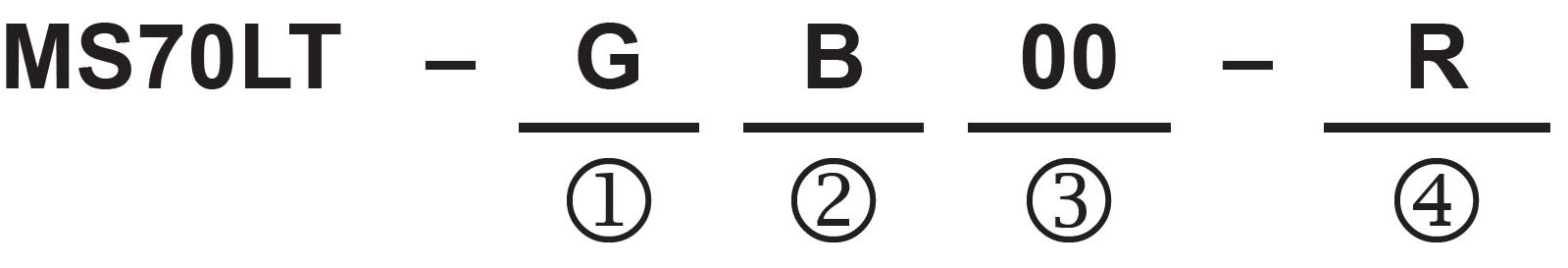

    • ① Mounting Type
    G Surface Mounting
    M Direct mounting
    P Pole mounting
    ② Light Style
    F Flashing
    B Flashing & Buzzer
    ③ Power Supply
    00 12~24VDC
    FF 110~220VAC
    ③ Lens Colors
    R Red
    Y Yellow
    G Green
    B Blue
    C Clear

    MS70LT
    Function Flashing, Buzzer
    Power Supply 12 ~ 24VDC, 110 ~ 220VAC(AC 50/60Hz)
    Buzzer Volume min 50 ~ max 80±5dB
    Dimension 68mm
    Lens Color Red, Yellow, Green, Blue, Clear
    Flashing rate (2 patterns) – Normal flashing : 75±5 time/minute – 3 pattern flashing (Emergency signal) : 130±5 time/minute
    Current consumption Flashing type 12~24VDC: 0.12~0.16A 110~220VAC:0.04~0.05A Flashing + Buzzer type 12~24VDC:0.16~0.21A 110~220VAC: 0.05~0.06A
    Connection UL2464 / 18AWG, AWM, 2C, 300V
    Material Body – ABS resin Lens – PC resin
    Ambient temperature -20 to 50°C
    Storage ambient temperature -20 to 70°C
    Ambient Humidity 45~85% RH
    Insulation resistance 500VAC 50 / 60Hz for 1 minute
    Vibration 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm X, Y, Z 1 hour in each direction
    Approval CE(DC products only), RoHS
    Protection structure IP65 (IP50-Buzzer type);
    Weight (DC type) G type: app.196g M type: app.195g P type: app.198g
    Light catalog Mounting options Mounting options for MS70
    • MS70LT_S4
    • MS70LT_S3
    • MS70LT_S2
    • MS70LT_S1
