MS70M Series D70mm MS70 Series

Key Features

  • Up to 7 color combinations available
  • Three Mounting options
  • Two Lens options for clear or softer view
  • IP65 (buzzer type -IP50)

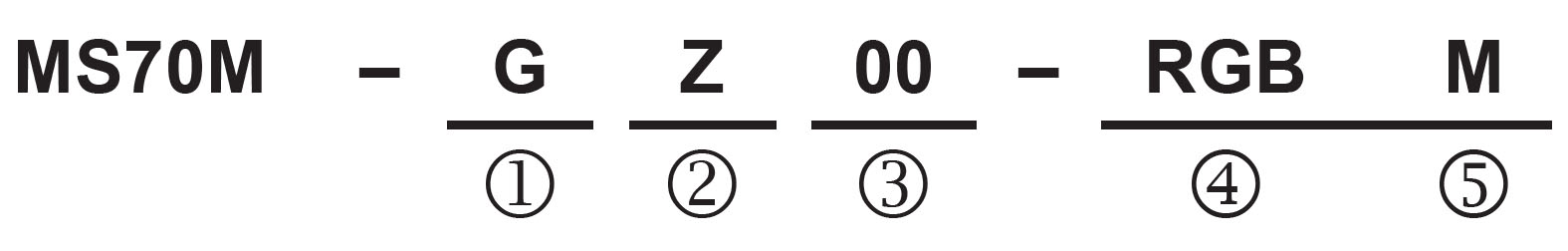

① Mounting Type
G Surface Mounting
M Direct mounting
P Pole mounting
② Light Style
F Flashing
B Flashing & Buzzer
Z Steady & Flashing & Buzzer
③ Power Supply
00 12~24VDC
FF 110~220VAC
③ LED Colors
RBG Red & Blue & Green
RYG Red & Yellow & Green
③ Lens Colors
No Mark Clear lens
M Milky lens
Function LED Steady + Flashing
Power Supply 12 ~ 24VDC, 110 ~ 220VAC(AC 50/60Hz)
Buzzer Volume min 50 ~ max 80±5dB
Dimension 68mm
Lens Color Clear / Milky white
Flashing rate 12VDC : 65±5 times per minute 24VDC : 60±5 times per minute 110~220VAC : 70±5times per minute
Current consumption LED Steady 12~24VDC: 0.22A 110~220VAC: 0.04~0.06A LED Steady +Buzzer 12~24VDC: 0.26A 110~220VAC: 0.05~0.06A
Connection UL1007/22AWG
Material Body – ABS resin Lens – PC resin
Ambient temperature -20 to 50°C
Storage ambient temperature -20 to 70°C
Ambient Humidity 45~85% RH
Insulation resistance 500VAC 50 / 60Hz for 1 minute
Vibration 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm X, Y, Z 1 hour in each direction
Approval RoHS
Protection structure IP65 (IP50-Buzzer type);
Weight (DC type) G type: app.196g M type: app.195g P type: app.198g
Light catalog Mounting options
