MT4B/5B/8B Series Ø45/56/85mm Incandescant Stack Light, Steady only

Key Features

  • Optional LED bulbs available
  • Steady Mode
  • Prism-cut lenses for even light distribution
  • Lead wire connection
  • Various mounting options availavle
  • Lead wire connection
    • ① Lens size
    4 Ø45mm
    5 Ø56mm
    6 Ø85mm
    ② Number of stack
    1 1 Light
    2 2 Lights
    3 3 Lights
    4 4 Lights
    5 5 Lights
    ③ Power supply
    A 24VAC/DC
    B 110~120VAC
    C 220~240VAC
    D 12VAC/DC
    ④ Lens colors
    R Red
    Y Yellow
    G Green
    B Blue
    C Clear
    Operation/Function Steady
    Maximum tier 5 stacks
    Power Supply 12VAC/DC 24VAC/DC 100~120VAC 220~240VAC
    MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B
    Current Consumption 1 light 0.4A 0.8A 0.2A 0.4A 0.04A 0.08A 0.02A 0.04A
    2 lights 0.8A 0.7A 0.4A 0.8A 0.09A 0.16A 0.04A 0.08A
    3 lights 1.2A 2.5A 0.6A 1.2A 0.13A 0.24A 0.06A 0.12A
    4 lights 1.6A 3.3A 0.8A 1.6A 0.16A 0.32A 0.08A 0.16A
    5 lights 2.0A 4.2A 1.0A 2.0A 0.20A 0.40A 0.10A 0.20A
    Vibration 3mm at 10~55Hz
    Certificate/Compliance MT4B: UL, CE, RoHS / MT5B/8B: RoHS
    Ambient Temperature -15 ~ 40 ̊C
    Storage Temperature -20 ~ 70 ̊C
    Lens Material PC Plastic
    Ambient humidity 45 ~ 85% RH
    Degree of Protection IP54
    Recommended wire size UL1007/22AWG

    Pole with base mounting
    Part Part number Description
    1 MAP-0022 Ø20mm, 0.87 inch long pole
    MAP-0060 Ø20mm, 2.36 inch long pole
    MAP-0240 Ø20mm, 9.45 inch long pole
    MAP-0750 Ø20mm, 29.53 inch long pole
    MAP-1000 Ø20mm, 39.37 inch long pole
    2 MAM-B070C Ø70mm plastic base
    MAM-B070D Ø70mm plastic base with waterproof rubber gasket
    MAM-B070R Ø70mm plastic base with 180 degree rotating pole holder
    MAM-B090 Ø90mm plastic base
    3 MAM-DS32A Aluminum base
    L-angle mounting with bracket
    4 MAP-M043 Ø20mm, 1.69 inch long threaded pole with 2 nuts
    MAP-M240 Ø20mm, 9.45 inch long threaded pole with 2 nuts
    MAP-M750 Ø20mm, 29.53 inch long threaded pole with 2 nuts
    5 MAM-DS25 L – angle bracket

    Wall mounting with bracket
    Part Part number Description
    1 MAP-0022 Ø20mm, 0.87 inch long pole
    MAP-0060 Ø20mm, 2.36 inch long pole
    MAP-0240 Ø20mm, 9.45 inch long pole
    MAP-0750 Ø20mm, 29.53 inch long pole
    MAP-1000 Ø20mm, 39.37 inch long pole
    2 MAM-B070C Ø70mm plastic base
    MAM-B070D Ø70mm plastic base with waterproof rubber gasket
    6 MAM-DS30-BLK Plastic Wall Mounting Bracket, Black (Pole & Base required)
    MAM-DS30-BGE Plastic Wall Mounting Bracket, Beige (Pole & Base required)
    MAM-DS40-BLK Plastic Wall Mounting Bracket, Black (Pole required)
    MAM-DS40-BGE Plastic Wall Mounting Bracket, Beige (Pole required)
    MAM-DS28 Plastic Wall Mounting Bracket, Black (Pole & Base required)
    Part number Power supply / Specifications
    MT4B LED   MAL-T09-S-12-[*] 12V DC
    MAL-T09-S-24-[*] 24V DC

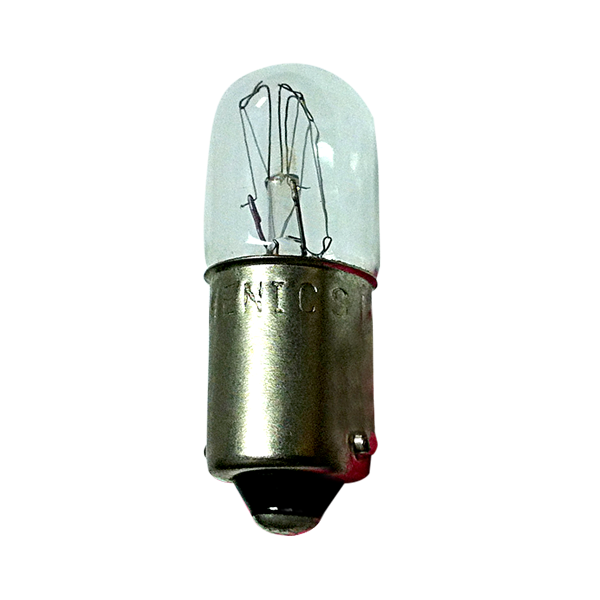

    Bulb   MAB-T09-S-012-05 12VAC/DC, 5W
    MAB-T09-S-024-05 24VAC/DC, 5W
    MAB-T09-S-130-05 110~120VAC, 5W
    MAB-T09-S-240-05 220~240VAC, 5W
    Lens – MAL-4[*] Ø45mm
    MT5B/8B LED MAL-T15-D-12-[*] 12VDC
    MAL-T15-D-24-[*] 24VDC
    MAL-T15-D-120-[*] 110~120VAC
    MAL-T15-D-220-[*] 210~240V AC

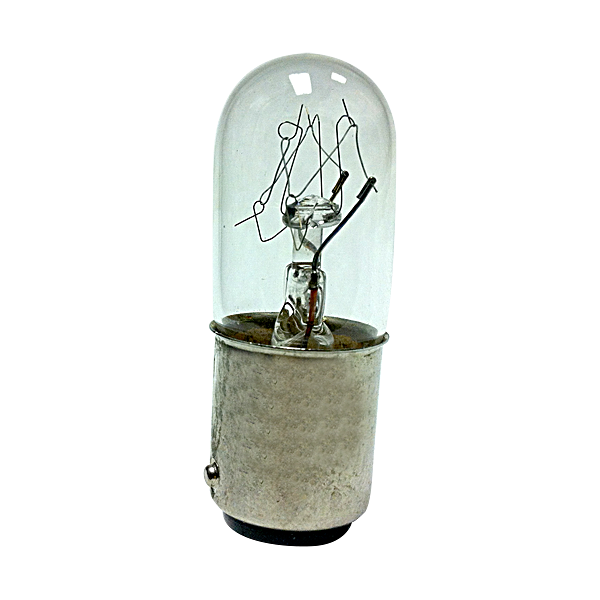

    Bulb   MAB-T15-D-012-10 12VAC/DC, 10W
    MAB-T15-D-024-10 24VAC/DC, 10W
    MAB-T15-D-120-10 110~120VAC, 10W
    MAB-T15-D-240-10 220~240VAC, 10W
    Lens – MAL-5[*] Ø56mm
    MAL-8[*] Ø86mm
    [*] indicates color of LED or Lens: R, Y, G, B, or C
