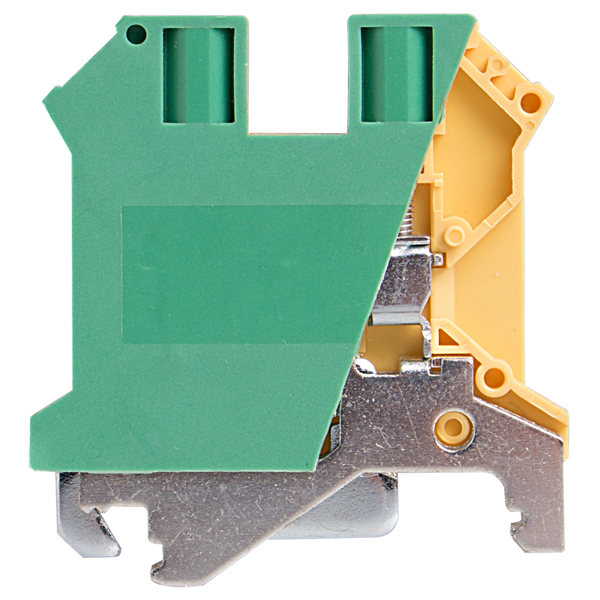

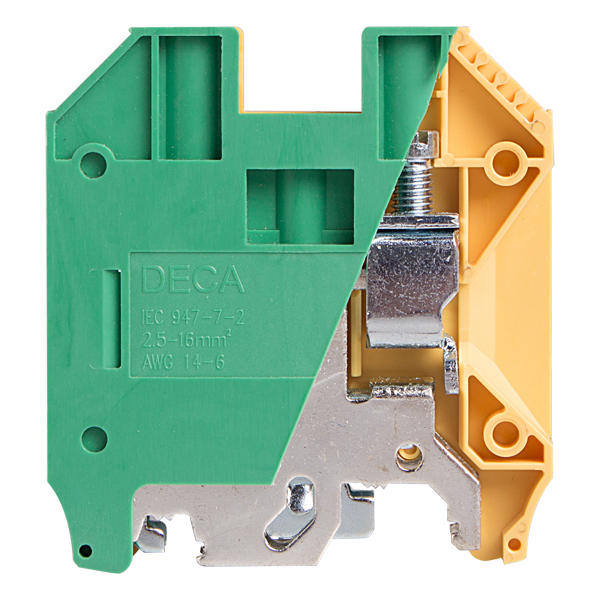

Screw Clamp Ground Type DIN Rail Terminal Ground Blocks

Part number CPE 2.5N CPE 4N CPE 6N CPE 10N CPE 16
UL/CSA Wire Size AWG 12-26 AWG 10-26 AWG 8-26 AWG 6-16 AWG 6-14
IEC Wire Size 0.2-2.5mm² 0.2-4mm² 0.2-6mm² 0.5-10mm² 2.5-16mm²
Certificate/Compliance
Torquie (lb-in) 7 8.5 16 18 35
Clamping Screw M3 M3 M4 M4 M5
Stripping length 10-14mm 10-14mm 12-16mm 12-16mm 14-18mm
Available colors Green+Yellow Green+Yellow Green+Yellow Green+Yellow Green+Yellow
Dimensions (mm: HxWxD) 47.5 x 42.5 x 5 47.5 x 42.5 x 6 47.5 x 42.5 x 8 47.5 x 42.5 x 10 63.5 x 57 x 12
Part number CPE 35 CPE 50
UL/CSA Wire Size AWG 2-10 AWG 1/0-6
IEC Wire Size 4-35mm² 16-50mm²
Certificate/Compliance
Torquie (lb-in) 51 70
Clamping Screw M6 M6
Stripping length 14-18mm 20-25mm
Available colors Green+Yellow Green+Yellow
Dimensions (mm: HxWxD) 63.5 x 57 x 16 76 x 70.5 x 20
