T Series push buttons Stainless steel body type

Key Features

  • Metal chassis psushbuttons
  • 16-30 mm mounting holes
  • IP65 degree of protection (water & dust proof)
  • Flush/Extended Head
  • High bright LED

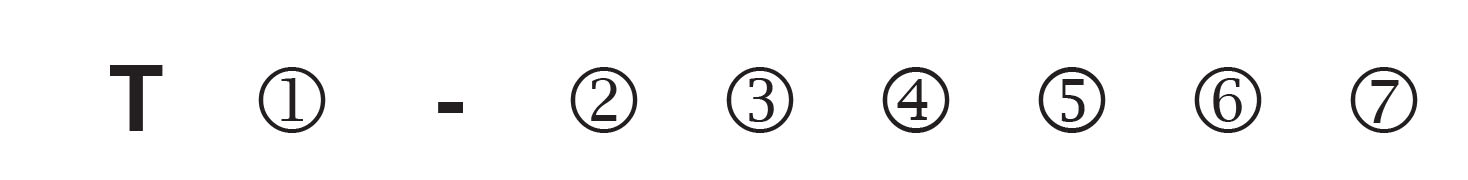

    • ① Size
    16 Ø16mm
    19 Ø19mm
    22 Ø22mm
    25 Ø25mm
    30 Ø30mm
    ② Operation Type
    1 Pilot Lamp
    2 Momentary Push
    3 Maintained Push
    4* 2 Position Selector
    5* 3 Position Selector
    6* 2 Position Key Selector
    7* 3 Position Key Selector
    8* Emergency Stop
    A* Emergency Stop
    CZ* Buzzer
    ③ Illumination & Shape
    1 Non-Illuminated Round
    7 Illuminated LED Round
    CR Continuous
    ④ Contact Form
    0 No Contact
    1 1N/O + 1N/C
    2 2N/O + 2N/C
    ⑤ Color
    R Red
    Y Yellow
    G Green
    B Blue
    W White
    ⑥ Button Type
    Flush Head
    H Extended Head**
    ⑦ Voltage
    D4 24VDC
    A2 110/220VAC
    *T19 Series Only
    ** T16 & T19 only, Non-Illuminated only
    T16, 19 T22, 25, 30
    General Specs. Contact Resistance Max. 50mΩ
    Insulation Resistance Min. 100MΩ at 500V DC
    Dielectric Strength 2,000VAC for 1 Min.
    Vibration Resistance 5~55Hz dual amplitude : 0.75mm
    Shock resistance Operation: 200m/s², Endurance: 500m/s²
    Life Cycles Mechanical Momentary: Min. 1,000,000
    Maintained: Min. 250,000
    Electrical Momentary: Min. 100,000 N/A
    Maintained: Min. 50,000 70mA, 8W
    Frequency of On/Off 1,200 times/hr
    Ambient Temperature Operation: -25°C~ +55°C, Storage: -30°C~+80°C
    Ambient Humidity 45~85%RH (at -5~+40°C)
    Degree of Protection IP65
    Terminal soldering temperature 20W 5Sec / 260°C 3Sec
    Material Body:SUS304, Operator:SUS316
    Contacts Contact Arrangement 1N/O +1N/C, 2N/O + 2N/C
    Contact Material Ag Alloy (24K Gold plate)
    Rated Insulation Voltage 250VAC
    Max. Switching Current 3A Max. 5A Max.
    Max. Switching Voltage 250VAC, 110VDC
    Rated Current 1A 24VDC / 120VAC 3A 24VDC/120VAC
    0.5A 250VAC 1.5A 250VAC
    Min. Applicable Load 1mA 5VDC
    LED Lamp Color Red, Green, Yellow, Blue, White
    Operator Type Round
    Regular Voltage 24VDC, 110VAC, 220VAC
    Rated CurrentColor 15mA Approx.
    Expercted Life 50,000hrs
    Buzzer Sound Type Continuous, ALternating Frequency
    Volume 80dB
    Rated Voltage 24VDC
    Rated Current Approx. 15mA
    Life Cycles 1,000hours
