B30 Series push buttons 30mm Panel mounting type

① Operation type
2 Momentary switch
4 2 step selector switch
5 3 step selector switch
6 2 step key selector switch
7 3 step key selector switch
8 E-stop switch (standard)
② Head type
1 Round
7 LED Illuminated round
③ Head color
R Red
G Green
Y Yellow
W White
B Blue
K Black (available only with B40, B65, H65, F65, and C65)
④ Features
A Water proof
N40 Ø40mm mushroom head push button
N65 Ø65mm mushroom head push button
B40 Ø40mm full guarded push button
B65 Ø65mm full guarded push button
H65 Ø65mm metal portable push button
F65 Ø65mm metal full guarded portable push button
C65 Ø65mm metal halfmoon guarded push button
S Knob type selector switch
L Lever type selector switch
K Key switch
EG Halfmoon guarded push button
⑤ Voltage(for B30-27 only)
24VDC 24VDC
110VAC 110VAC
220VAC 220VAC
GENERAL INFORMATION
Norminal rating 10A 250VAC
Contact resistance Max. 50mΩ
Dielectric strength btwn charger & earth 2,500VAC for 1 minute
btwn charging sectors 1,800VAC for 1 minute
Frequency of alteration 30 operation/min
Shock resistance Operation error: 100m/s², Durability 500m/s²
Expected life Mechanical 500,000 times
Electrical 100,000 times
Ambient temperature Operation: -25°C~ +70°C, Storage: -30°C~+80°C
Ambient humidity 35~85%RH
Degree of protection IP63 (optional IP65)
Insulation Resistance 100MΩ at 500V DC
Norminal current
Contact Material Ag alloy
Rated current Voltage AC1 AC3 DC1
24V 20A 10A 6A
110V 16A 8A 1.2A
250V 10A 5A 0.5A
440V 5A 2.5A 0.25A
LED
Rated voltage 24VAC
Rated Current Approx. 15mA
Expected life 50,000hrs
Image Part number Description

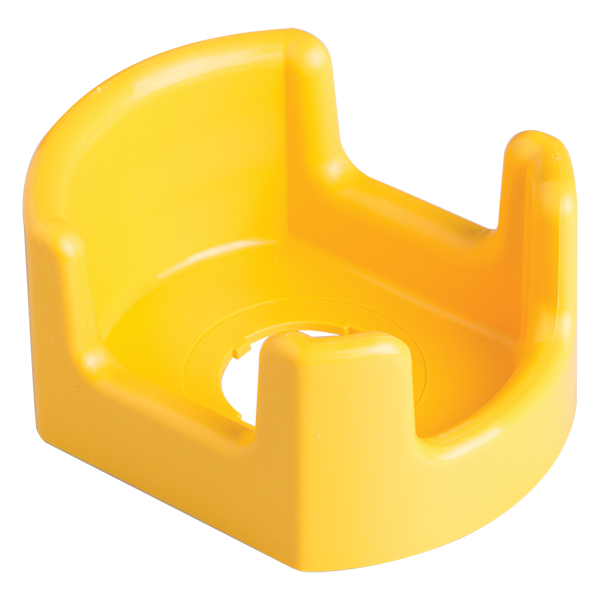

 MPC-KA-LD22 KEG-13Y E-Stop switch protect cover
  • Momentary push button
  • Illuminated push button
  • Selector switches
  • E-Stop switches
  • Ø40mm mushroom head push button
  • Ø65mm portable push button
  • Ø65mm mushroom head push button
  • Ø65mm head half moon guard push button
  • Ø65mm head full guard push button
