SFL/SFLA Series Safety Light Curtain

Key Features

  • International safety standard and regulation compliance: Type 4 ESPE(AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL Listed, S-Mark
  • 3 detection type models available (finger, hand, hand-body detection)
  • Various safety-related functions & self-diagnosis functions
  • Selectable detection distance (short/long mode) & Switch control output settings (NPN/PNP output)
  • Operation status reading with 7-segment display and LED indicators
  • Easy beam adjustment with top and bottom beam indicators
  • Output display indicator on top displays light received/blocked status and muting status. Additional lamp not required.
  • 4 non-safety outputs for various applications (2 AUX, 2 lamp)
  • Detail function settings with dedicated software “atLightCurtain” (SFLA models)
① Type
no mark Standard type
A Advanced type
② Detection Capability
14 Ø14mm (Finger Detection)
20 Ø20mm (Hand Detection)
30 Ø30mm (Hand-Body Detection)
③ Number of Optical Axes
Please see the catalog for selection

Product & Sensing Heights

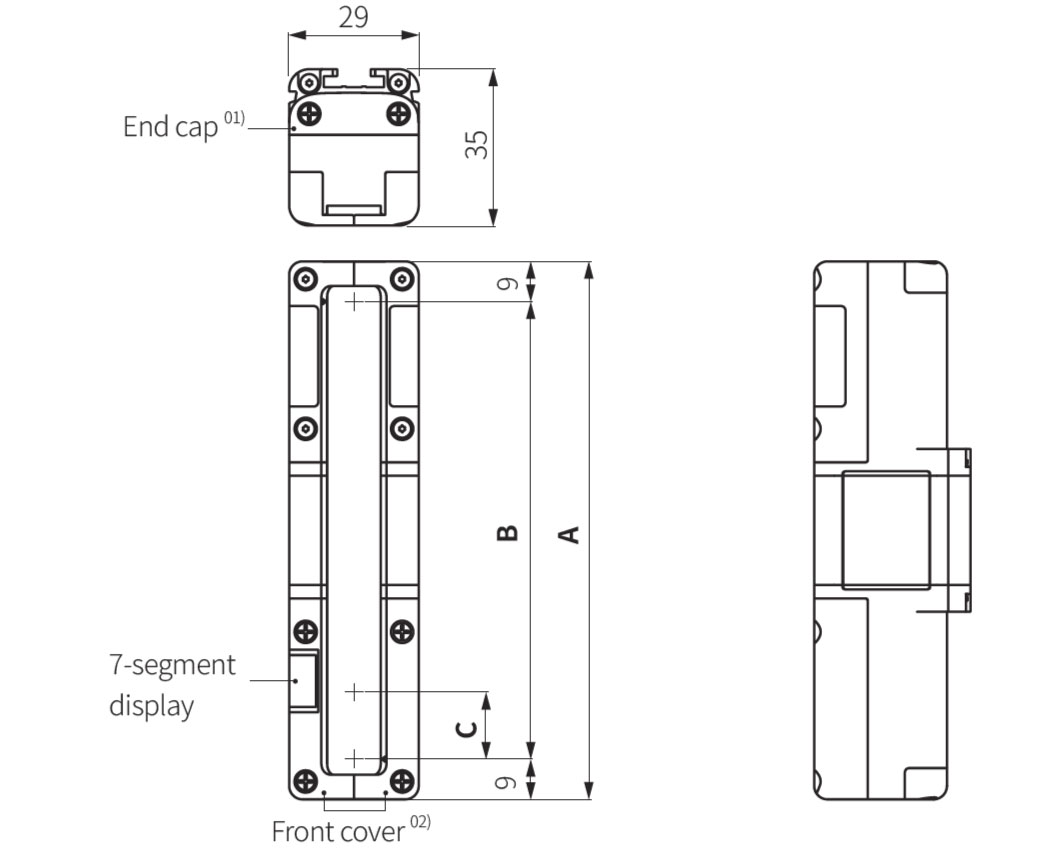

Detection Capability Type A (Protective Height) B (Sensing Height) C(Optical Axis Pitch) Number of Beams
Ø14mm (Finger) Standard 144 ~ 1,008mm (5.7 ~ 39.7″) 126 ~ 990mm (5.0 ~ 39.0″) 9 15 ~ 111
Advanced 144 ~ 1,800mm (5.7 ~ 70.9″) 126 ~ 1,782mm (5.0 ~ 70.2″) 15 ~ 199
Ø20mm (Hand) Standard 183 ~ 1,023mm (7.2 ~ 40.3″) 165 ~ 1,005mm (6.5 ~ 39.6″) 15 12 ~ 68
Advanced 183 ~ 1,863mm (7.2 ~ 73.3″) 165 ~ 1,845mm (6.5 ~ 72.6″) 12 ~ 124
Ø30mm (Hand-Body) Standard 1,043 ~ 1,868mm (41.0 ~ 73.5″) 1,025 ~ 1,850mm (40.6 ~ 72.8″) 25 42 ~ 75
Advanced 218 ~ 1,868mm (8.6 ~ 73.5″) 200 ~ 1,850mm (7.9 ~ 72.8″) 9 ~ 75

Accessories for SFL/SFLA Series
  • Brackets for Installation
Part# Type
BK-SFL-TBF Top/Bottom Bracket
BK-SFL-TBA Top/Bottom Adjustable Bracket
BK-SFL-SF Side Bracket
BK-SFL-SA Side Adjustable Bracket
  • Power I/O Cables
Type Part# Length (L)
Emitter (black) Receiver (black)
Connector type SFL-BCT SFL-BCR 0.3 m (1 ft)
Wire type SFL-C3T SFL-C3R 3 m (9.8 ft)
SFL-C7T SFL-C7R 7 m (23 ft)
SFL-C10T SFL-C10R 10 m (32.8 ft)
SFL-C15T SFL-C15R 15 m (49.2 ft)
  • Connector Cables
Type Part# Length (L)
Emitter (black) Receiver (black)
Socket type CID8-3T CID8-3R 3 m (9.8 ft)
CID8-5T CID8-5R 5 m (16.4 ft)
CID8-7T CID8-7R 7 m (23 ft)
CID8-10T CID8-10R 10 m (32.8 ft)
Socket-Plug type C1D8-3T C1D8-3R 3 m (9.8 ft)
C1D8-5T C1D8-5R 5 m (16.4 ft)
C1D8-7T C1D8-7R 7 m (23 ft)
C1D8-10T C1D8-10R 10 m (32.8 ft)
C1D8-15T C1D8-15R 15 m (49.2 ft)
C1D8-20T C1D8-20R 20 m (65.6 ft)
  • Series Connection Cables
Part# Length (L)
Emitter (black) Receiver (black)
SFL-EC03T SFL-EC03R 0.3 m (1 ft)
SFL-EC3T SFL-EC3R 3 m (9.8 ft)
SFL-C7T SFL-EC7R 7 m (23 ft)
SFL-EC10T SFL-EC10R 10 m (32.8 ft)
  • Other Cables
Type Part# Length (L)
Lamp Output Cable SFL-LC 3 m (9.8 ft)
USB/Serial Communication Converter SCM-US 1.5 m (4.9 ft)
Converter Cable EXT-SFL 0.3 m (1 ft)
  • SFL-SFLA
