MT Series PCB Terminal Blocks & Connectors

There is a minimum order quantity of 1000 pieces for each model. Blanket orders are accepted
Part number MT300-500 MT300-508 MT300-750 MT300-762 MT300-100 MT300-016

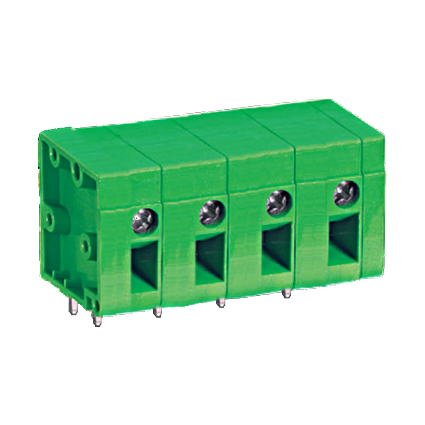

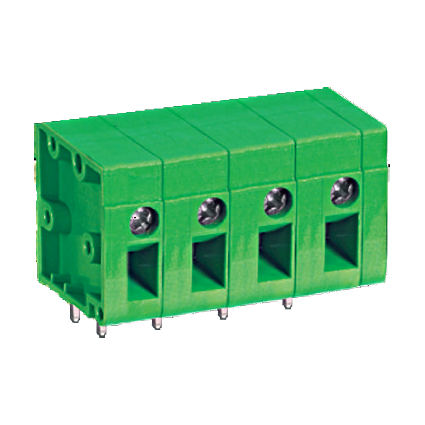

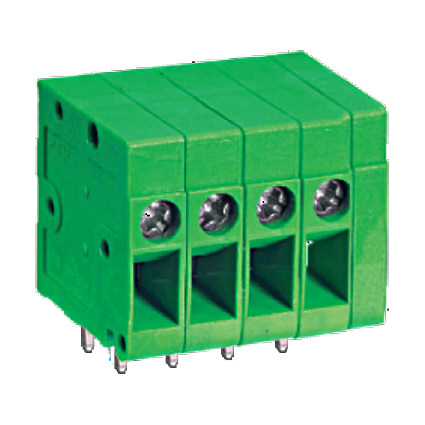

Photo  MT300-500  MT300-508  MT300-750  MT300-762  MT300-100  MT300-016
Pitch 5.00mm 5.08mm 7.50mm 7.62mm 10.00mm 10.16mm
Poles 2~24 2~24 2~16 2~16 2~16 2~16
Current rating 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V
Certificate/Compliance
Download catalog  Download catalog  Download catalog  Download catalog  Download catalog  Download catalog Download catalog

Part number MT310-500 MT310-508 MT310-750 MT310-762 MT310-100 MT310-016

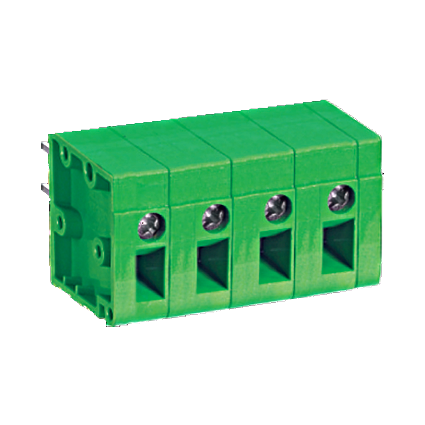

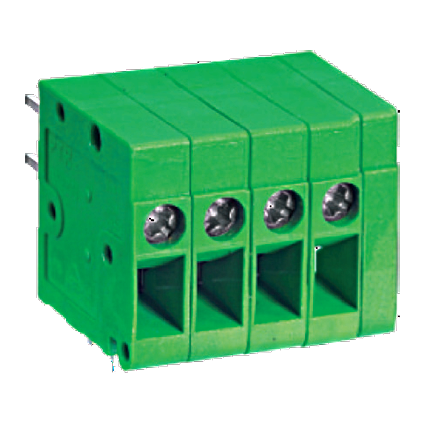

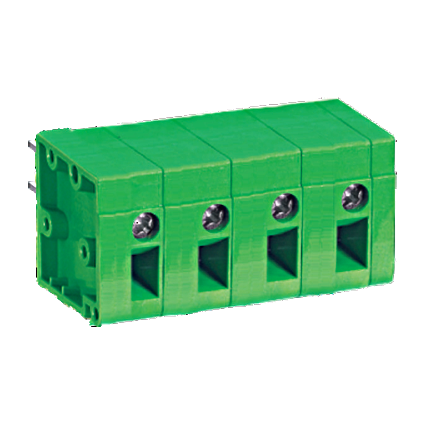

Photo  MT310-500  MT310-508  MT310-750  MT310-762  MT310-100  MT310-016
Pitch 5.00mm 5.08mm 7.50mm 7.62mm 10.00mm 10.16mm
Poles 2~24 2~24 2~16 2~16 2~16 2~16
Current rating 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V 20Amp AC300V
Certificate/Compliance
Download catalog  Download catalog  Download catalog  Download catalog  Download catalog  Download catalog Download catalog

Part number MT420-500 MT420-508

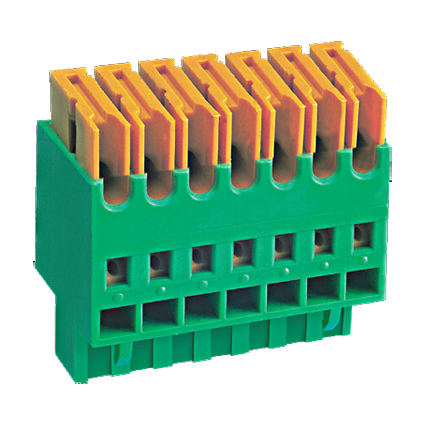

Photo  MT420-500  MT420-508
Pitch 5.00mm 5.08mm
Poles 2~18 2~18
Current rating 10Amp AC600V 10Amp AC600V
Certificate/Compliance
Download catalog  Download catalog Download catalog
