MA Series PCB Terminal Blocks

There is a minimum order quantity of 1000 pieces for each model. Blanket orders are accepted

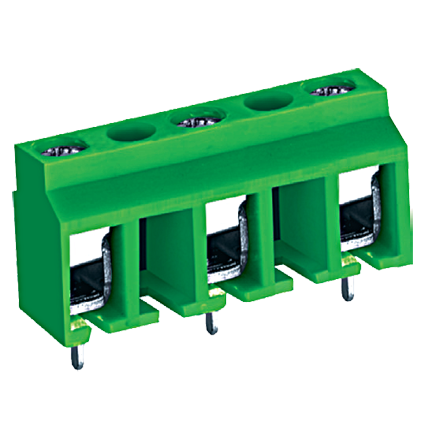

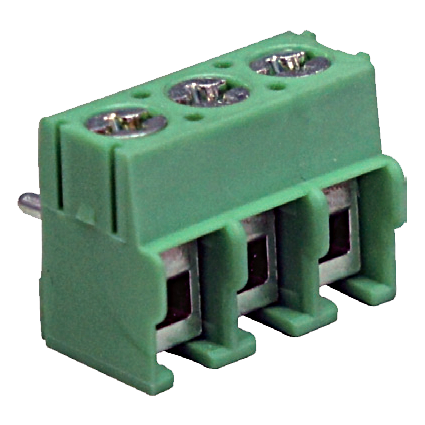

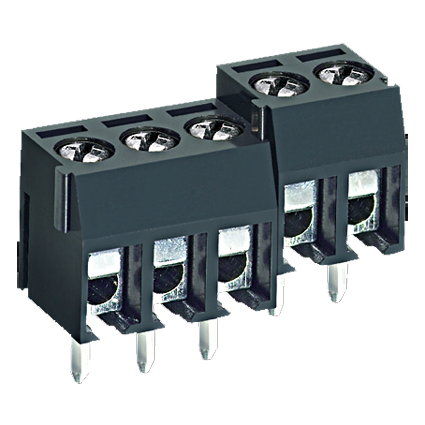

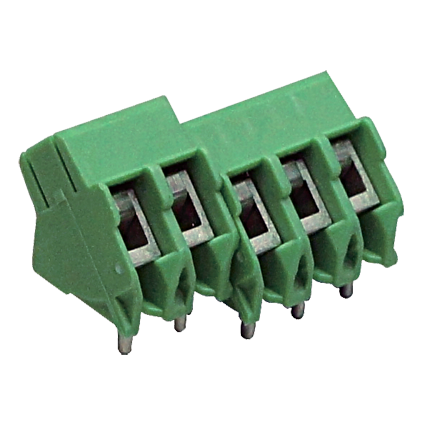

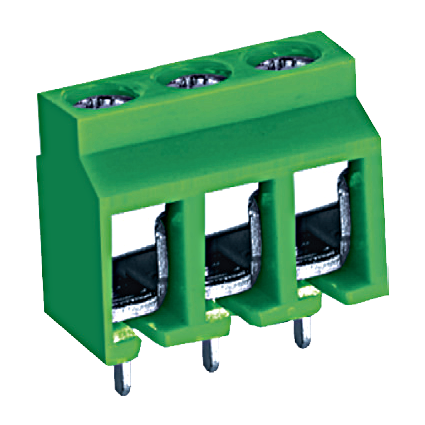

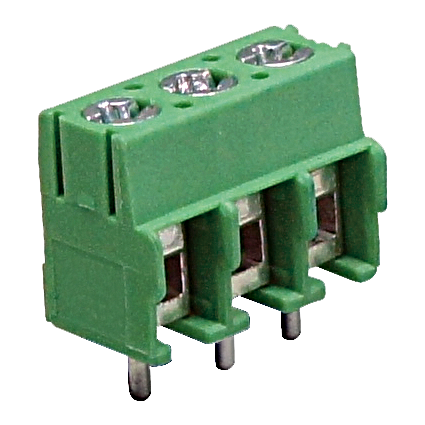

Part number	MA112-500M	MA114-500M	MA126-500M	MA212-350M	MA311-500	MA311-100
Pitch	5.00mm	5.00mm	5.00mm	3.50mm	5.00mm	10.00mm
Poles	2~3	2~3	2~3	2~3	2~24	2~14
Current rating	10Amp AC300V	10Amp AC300V	16Amp AC300V	16Amp AC300V	16Amp AC300V	16Amp AC300V
Certificate/Compliance
Type of contact	Modular	Modular	Modular	Modular	Single mold	Single mold
Download catalog

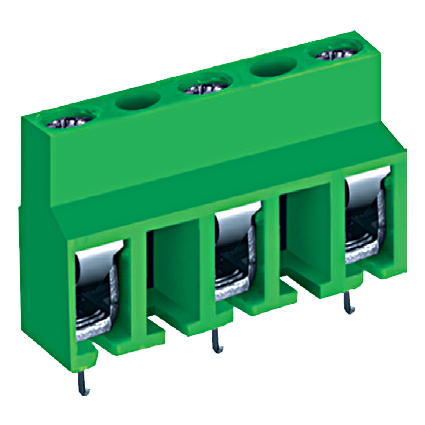

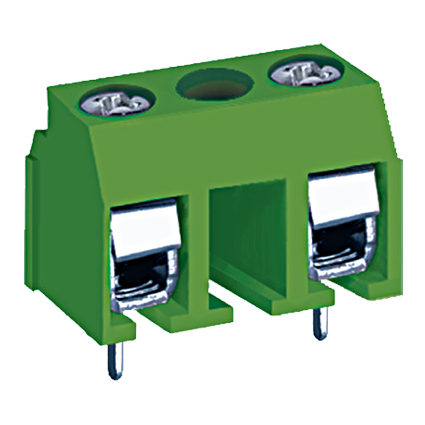

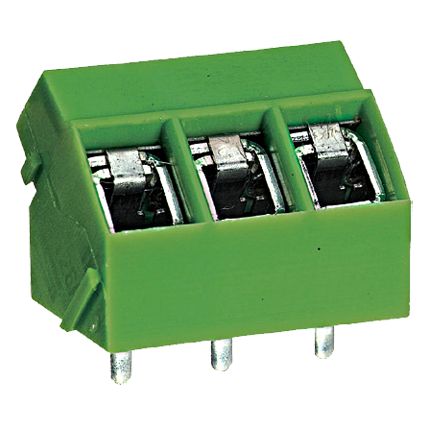

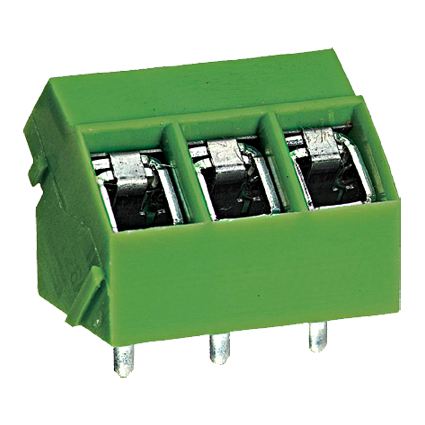

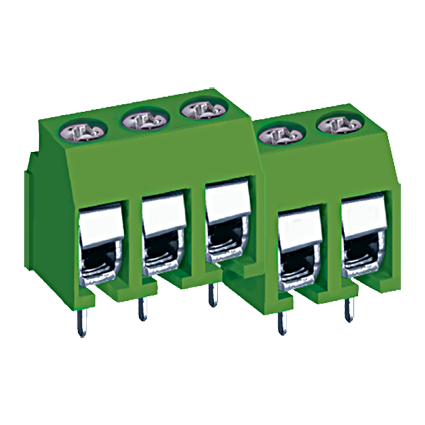

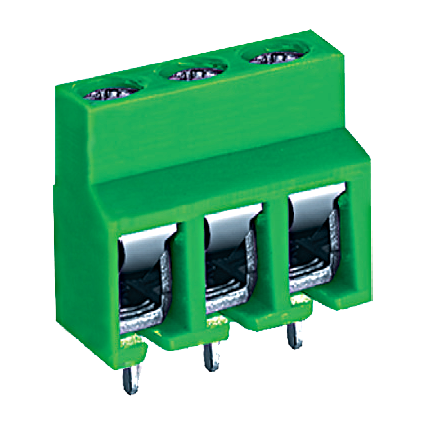

Part number	MA321-500	MA321-100	MA325-500M	MA325-508M	MA331-500M	MA331-100M
Pitch	5.00mm	10.00mm	5.00mm	5.08mm	5.00mm	10.00mm
Poles	2~24	2~14	2~3	2~3	2~3	2~3
Current rating	10Amp AC300V	15Amp AC300V	10Amp AC300V	10Amp AC300V	10Amp AC300V	15Amp AC300V
Certificate/Compliance
Type of contact	Single mold	Single mold	Modular	Modular	Modular	Modular
Download catalog

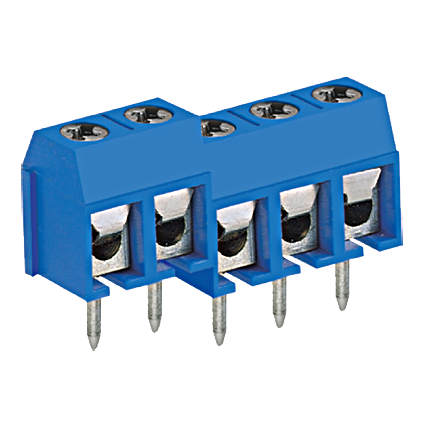

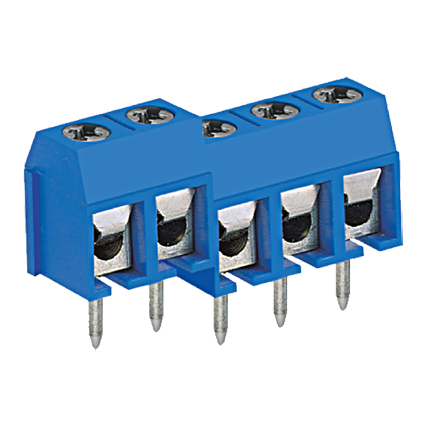

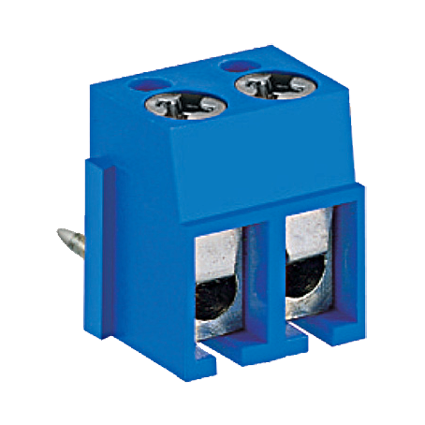

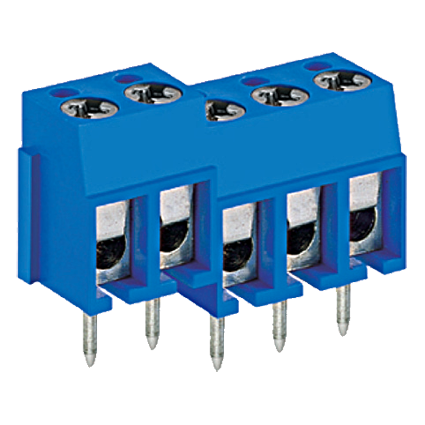

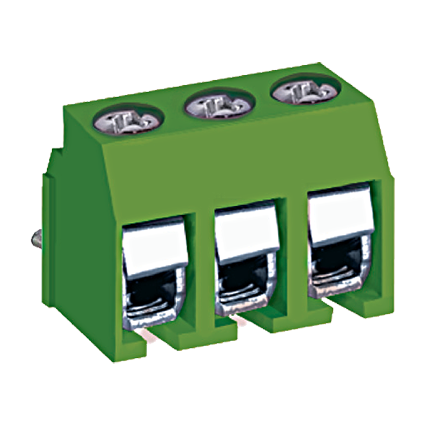

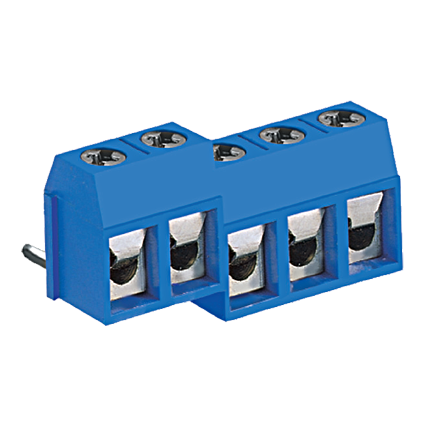

Part number	MA334-500M	MA412-500M	MA412-508M	MA414-500M	MA522-500M	MA524-500M
Pitch	5.00mm	5.00mm	5.08mm	5.00mm	5.00mm	5.00mm
Poles	2~3	2~3	2~3	2~3	2~3	2~3
Current rating	10Amp AC300V	16Amp AC300V	16Amp AC300V	16Amp AC300V	16Amp AC300V	16Amp AC300V
Certificate/Compliance
Type of contact	Modular	Modular	Modular	Modular	Modular	Modular
Download catalog

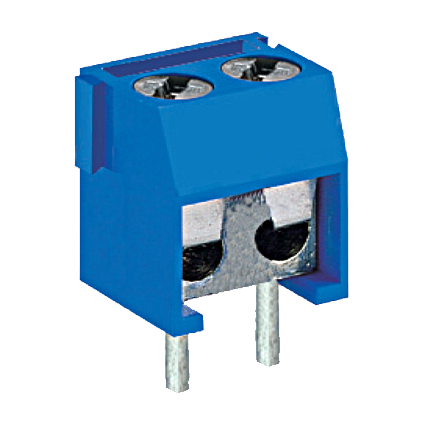

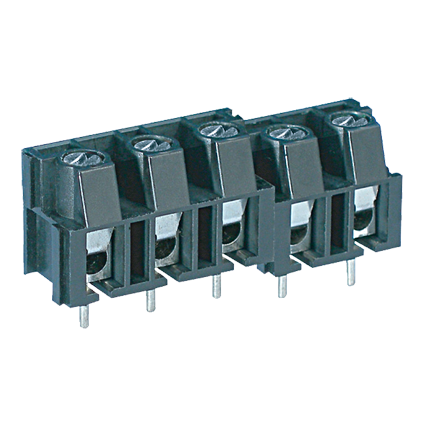

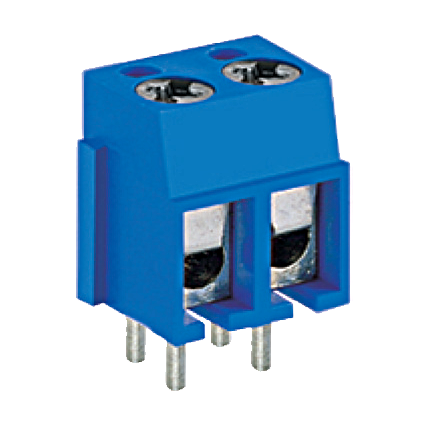

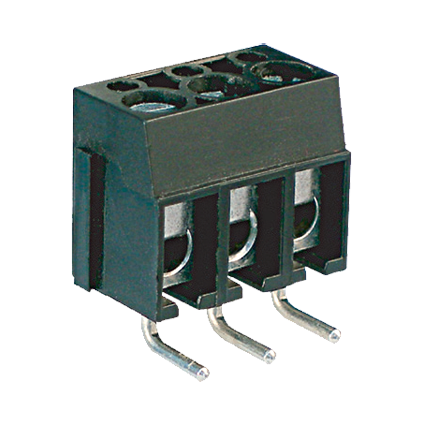

Part number	MA525-500M	MA527-500M	MA612-750M	MA622-500M
Pitch	5.00mm	5.00mm	7.50mm	5.00mm
Poles	2~3	2~3	2~3	2~3
Current rating	16Amp AC300V	16Amp AC300V	10Amp AC300V	16Amp AC300V
Certificate/Compliance
Type of contact	Modular	Modular	Modular	Modular
Download catalog
